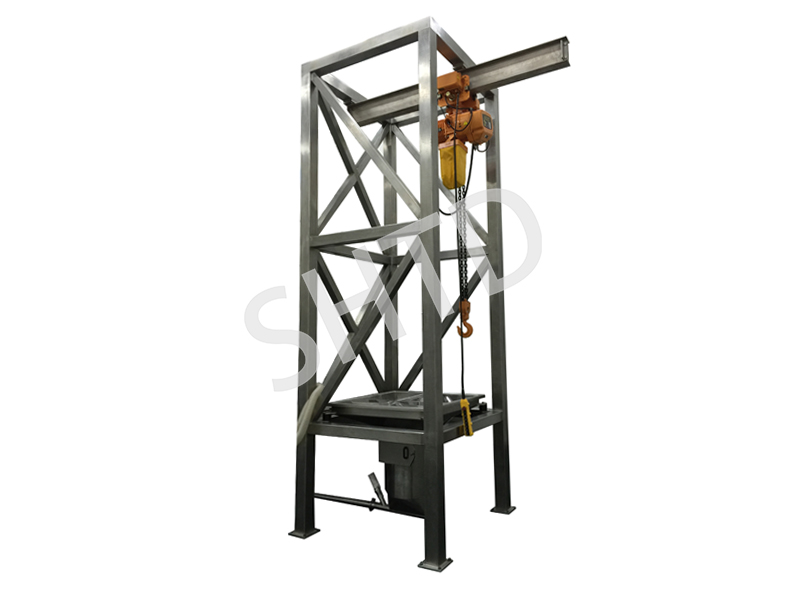

Ton bag unloading machine
The ton bag unloading station is mainly used for the dust-free unloading process of ton bag powder.
In the production process, there are often the specifications of ton bag packaging. The ton bag
unloading station uses electric hoist to lift it to the top of the ton bag holder. After docking the ton
bag with the ton bag holder, open the tie rope, and the vibration device is configured to assist
feeding. The ton-bag unloading station replaces the traditional manual unpacking, the production
environment is clean, without dust leakage.
1. Food grade stainless steel;
2. It is available to reduce heavy manual labor;
3. Without dust flying, hygiene and environmental protection;
4. Discharging completely and without residue;
5. It is available to be integrated weighing, metering and conveying system.
Model no.: TDDXLZ-3T
Application spec.: 0.3-3T/bag
Discharging capacity: 3-7T/H
Frame: 120*120*4mm
Loading height: 1510mm
Powder supply: 3P 380V 50Hz
Total power: 3.06kw
Overall dimension: L2650*W1570*H4460mm
