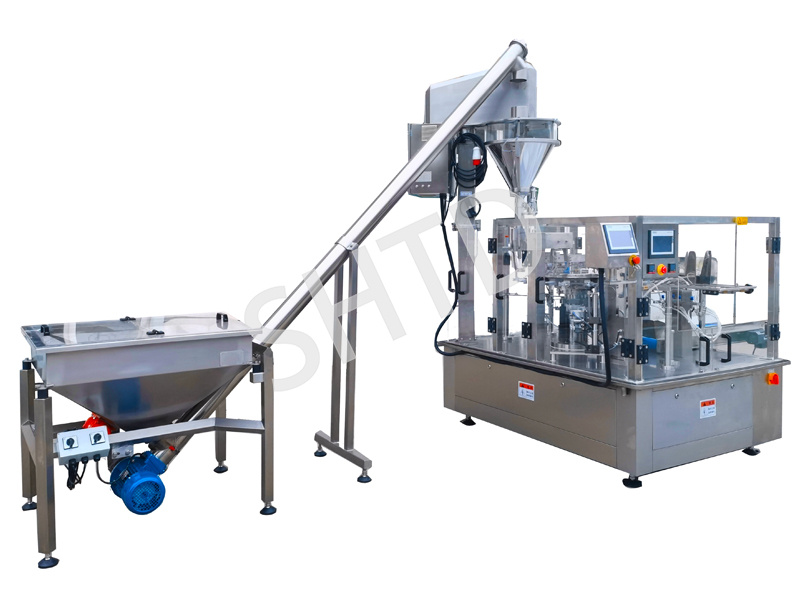

Rotary feeding bag-packing machine
This machine and metering configuration can automatically complete the whole packaging process
of metering, filling, date printing, finished product transportation and automatically complete the
counting. It is suitable for packaged milk powder, protein powder, solid beverage, condiments,
white granulated sugar, glucose, coffee powder, etc.
1. The whole machine is a ten position structure. The operation is controlled by PLC and large screen touch screen, which is simple and convenient.
2. Supporting the automatic fault tracking and alarm system, the real-time display of the operation status.
3. Mechanical empty bag tracking and detection device to achieve no open bag, no outmaterial and no sealing.
4. The main transmission system adopts variable frequency pless speed control and full cam transmission, with stable operation and low failure rate.
5. The whole machine design conforms to the GMP standard.
Serial no. | TDGDS-80 | Type | Packageing serial |
Materials: | Stainless steel | Spec. | Customized |
Description: | |||
Metering mode: screw measurement
Packaging specifications: L: 120-360mm W 130-250mm
Packaging materials: single layer pe, pe composite film, paper film and other composite film
Packaging forms: precast bag (plane bag, self-supporting bag, zipper bag, handbag bag, M bag, etc.)
Packaging speed: 30-40 package / minute
Packaging accuracy: 100-500g, ≤±1%;>500g, ± 0.5%
Power supply: 3p AC208-415V 50 / 60 Hz
Total power: 5.4kw
Total weight: 1200kg
Compressed air: 6kg / m2, 0.5 m3/min
Dimension: 2450*2250*2200mm
Hopper volume: 50L
