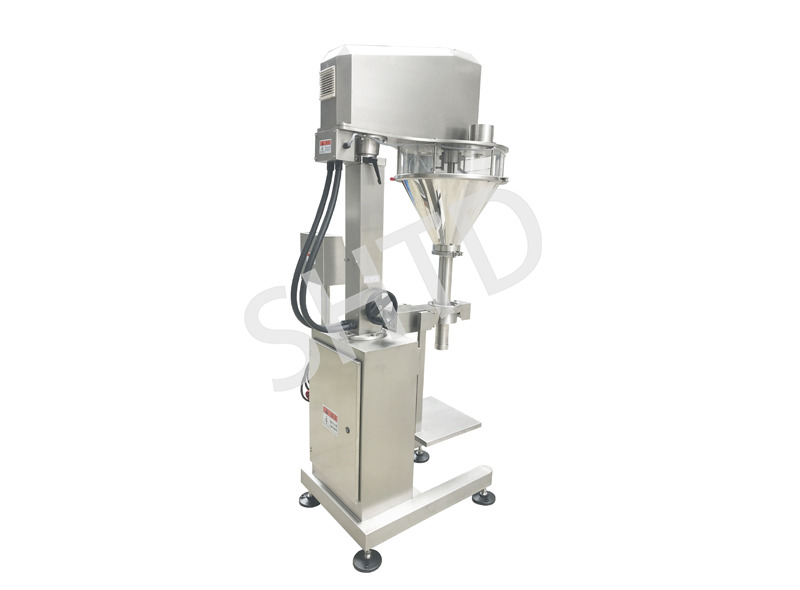

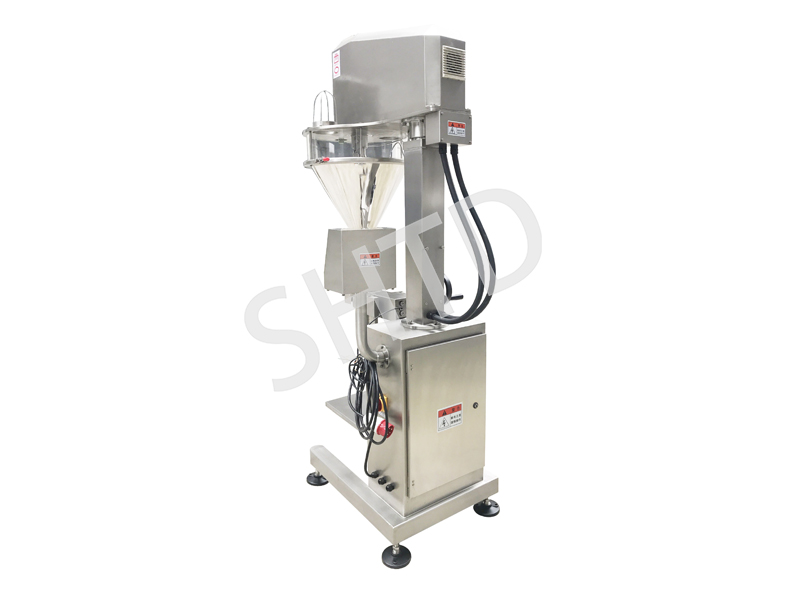

Semiautomatic auger filling machine by weighing

This series packing machines can handle weighing,filling functions etc.Featured with real-time

weighing and filling design these machine can be used to pack high accuracy required,with uneven

density,free flowing or non free flowing powder or small granule. I.e. Protein powder,food additive,

solid beverage,sugar,toner,veterinary and carbon powder etc.


Consult now

* Stainless steel structure;Quick disconnecting or split hopper could be washed easily without tools.

* Servo motor drive screw.

* Pneumatic bag clamper and platform equip with load cell to handle two speeds filling as per preset weight.Featured with high speed and accuracy weighing system.

* PLC control, touch screen display, easy to operate.

* Two filling modes can be inter-changeable,fill by volume or fill by weight.Fill by volume featured with high speed but low accuracy.Fill by weight featured with high accuracy but low speed.

* Save the parameter of different filling weight for different materials.To save 10 sets at most.

* Replacing the auger parts,it is suitable for material from super thin powder to granule.


 Packing Weight

  1g - 500g

 Packing Accuracy

 <100g,≤±1-2%; 100-500g,   ≤±1%;

 Packing Speed

  5 - 15 times per min

 Power Supply

  3P AC208 - 415V  50/60Hz

 Compressed   air

  6kg/cm3   0.1cbm/min

 Total Power

  0.93Kw

 Total Weight

  130kg

 Overall Dimension

  800×790×1900mm

 Hopper Volume

  25 L
